LILEAD Display User Manual
Download
| Description | Picture |
| 1. Custome Power Cable | |
| M8 ring terminal cables for battery +/- connection |
|

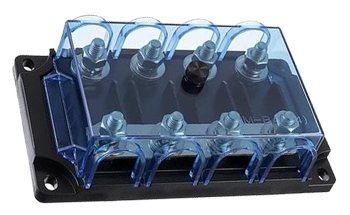

| 2. Battery Busbar | |
| Central power distribution point for connecting batteries and electrical loads. Ensures stable and consistent current flow in parallel battery systems. |
|
| * Select appropriate cable lengths and assemble using proper tools. See table below for recommendations. | |||||||
Current (Ampere) | Recommended power cables specification | ||||||
| 250-300 | 4AWG | 2AWG | 2AWG | 1/0AWG | 1/0AWG | 1/0AWG | 2/0AWG |
| 200-250 | 4AWG | 4AWG | 2AWG | 2AWG | 1/0AWG | 1/0AWG | 1/0AWG |
| 150-200 | 6AWG | 4AWG | 4AWG | 2AWG | 2AWG | 1/0AWG | 1/0AWG |
| 125-150 | 8AWG | 6AWG | 4AWG | 4AWG | 2AWG | 2AWG | 2AWG |
| 105-125 | 8AWG | 8AWG | 6AWG | 4AWG | 4AWG | 4AWG | 2AWG |
| 85-105 | 8AWG | 8AWG | 6AWG | 4AWG | 4AWG | 4AWG | 4AWG |
| 65-85 | 10AWG | 8AWG | 8AWG | 6AWG | 4AWG | 4AWG | 4AWG |
| 50-65 | 10AWG | 10AWG | 8AWG | 8AWG | 6AWG | 6AWG | 4AWG |
| 35-50 | 10AWG | 10AWG | 10AWG | 8AWG | 8AWG | 8AWG | 6AWG |
| 20-35 | 12AWG | 10AWG | 10AWG | 10AWG | 10AWG | 8AWG | 8AWG |
| 0-20 | 12AWG | 12AWG | 12AWG | 12AWG | 10AWG | 10AWG | 10AWG |
| 0-1.2m | 1.2-2.1m | 2.1-3m | 3-4m | 4-4.9m | 4.9-5.8m | 5.8-6.7m | |
| 0-4ft | 4-7ft | 7-10ft | 10-13ft | 13-16ft | 16-19ft | 19-22ft | |
| Cable length | |||||||
